3M TYPE 1U BLANK PATCH PANEL

Patch Panel
A: 24 Port Cat.5e Patch Panel
B: 24 Port Cat.6 Patch Panel

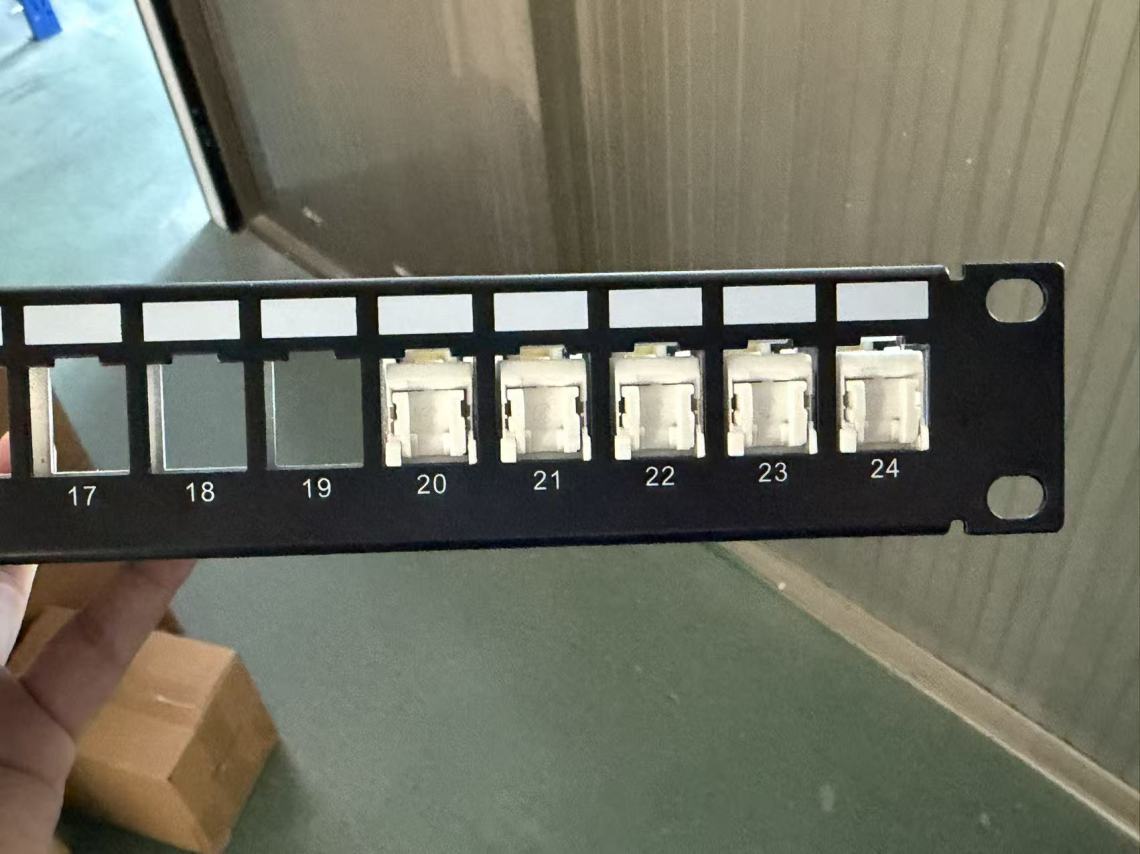

C:24 Port Blank Frame without Jacks

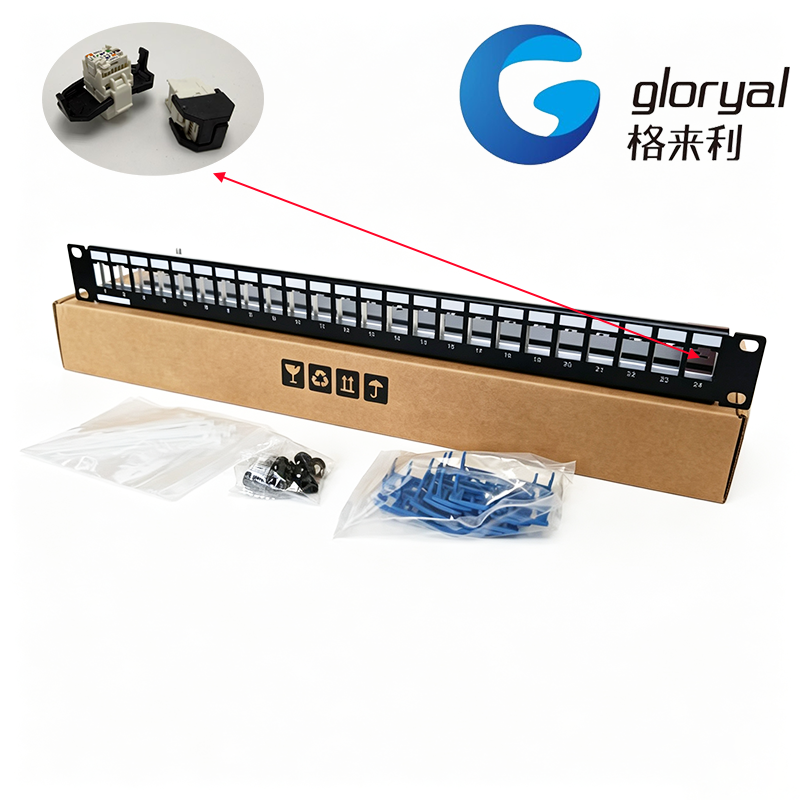

With 24pcs Keystone Jacks (GL-1137)

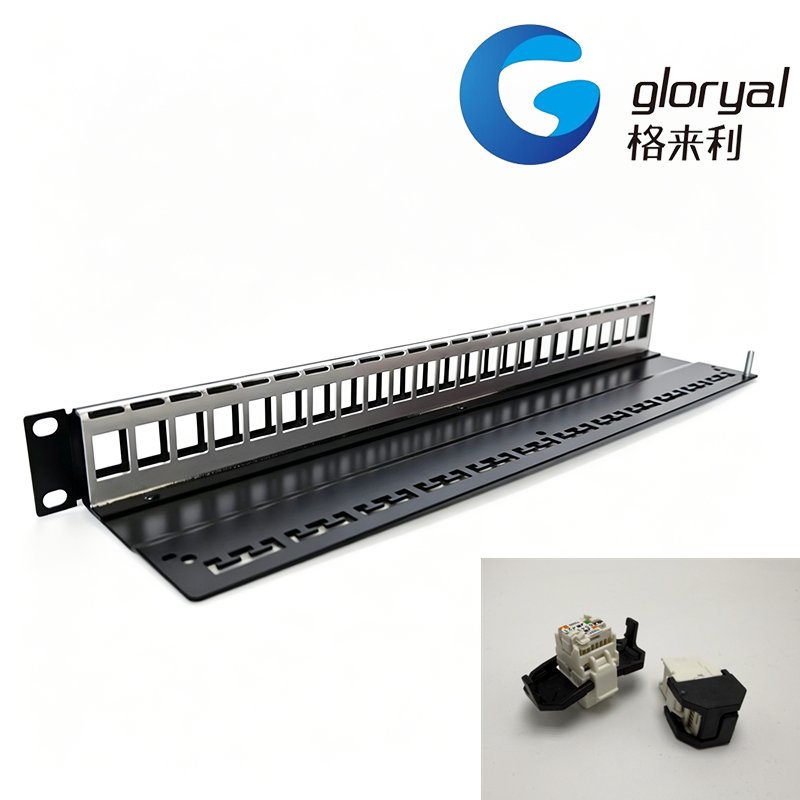

With Bracket

.MECHANICAL:

1.  Housing material: PBT+30%GF

2.  PANEL FLAME:ST-12, T=1.6, POWDER COATING IN BLACK COLOR

3. IDC material: PC, CONTACT:PHOSPHOR BRONZE, TIN PLATED

4.  RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~28

9. TIA Cat.6a Perm. Link Test: Worst pair NEXT margin≥ 3.0dB

10. Retentiveness of insertion structure: 50N 60±5s

3. Technique Characteristics:

1. Entire high-carbon stell outer frame, with plastic powder cladding.

2. RJ45 Jack frame materials: PBT; golden plated phosphor bronze pins; shielded shell of the RJ45 jack, brass housing with nickl-plated; IDC clip: tinned phosphor bronze pins.

3. Fitting for 22AWG, 23AWG and 24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.

4. Cabling sequence: T568A&B.

5. Puching tool: Standard LSA type or 110 type punching tool.

6. Testing Condition of transmitting capability: 500MHz.
