|Payment & Shipping Terms||Supply Capacity|
|Unit Price:||4.5~4.6 USD||Production Capacity:||1000pcs/day|
|Trade Term:||FOB,CFR||Packing:||blister card|
|Payment Terms:||Paypal, L/C, T/T, WU||Delivery Date:||7days|
|Min. Order:||100 Piece/Pieces|
|Means of Transport:||Ocean, Land|

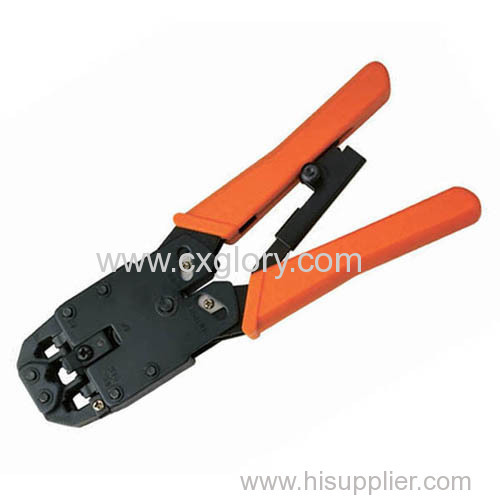

Crimping tool Network Tools,Cabling Tools for 8P+6P+4P.
Non-Ratchet Type:Remove the closed lock to open the handles.
Ratchet Type:Squeeze the handles until it stops to open the handles.
1.Insert cable between stripper blades.
1a.Insert 8P+6P+4P cable from the top end of the stripper black until it touches the stop guide.
1b.Insert 8P+6P+4P Pcable into the two-bladed side of the tool's stripper and let it extend a litter past the lower cut blade.
2.Cutting modular cable:
Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length.Make sure to cut the ends of the cord straight across, not diagonally.
3.Squeeze handles until it stops, cable must be kept perpendicular and then pull from the tool.
4.Remove the outer jacket ,insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end.
5.Place modular plug with cable into the tool's holder.Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.
6.Remove the crimped plug from the tool.
7.During the crimping process, you may turn the screw on the ratchet in counterclockwise direction to stop the incorrect operation.
8.To crimp "DEC"plug, follow step1 to step4.
Remove the screw on the left side of the 8P+6P+4P holder, insert the "DEC" plug and cable into the 8P holder and squeeze handles till it stops.
· Your inquiry will be replied within 24 hours.
· Well-trained & experienced sales can reply your inquiries in English.
· OEM & ODM projects are highly welcomed.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service.
Category: Crimping Tool
